 |
電話：+86 0537-3330928
傳真：+86 0537 3330928
郵箱：info@darrenco.cn
|
|
|
| 34Cr2Ni2Mo/DIN34CrNiMo6 /1.6582|ASTM4337 |
34Cr2Ni2Mo/DIN 34CrNiMo6 / 1.6582 | ASTM 4337
-
牌號(hào) Grade34Cr2Ni2Mo/DIN 34CrNiMo6 / 1.6582 | ASTM 4337
|
GB |
DIN |
W-Nr. |
AISI |
JIS |
BS |
EN |
|
34Cr2Ni2Mo |
34CrNiMo6 |
1.6582 |
4337 |
|
|
|
-
執(zhí)行標(biāo)準(zhǔn) Standard GB/T3077-2015
-
尺寸、外形、允許偏差 Size , shape ,tolerance
|
狀態(tài) condition |
公差 tolerance |
|
磨皮 grinding surface |
-0/+5mm |
|
車削 machined surface |
-0/+3mm |
|
自由長(zhǎng)度 free length |
4-6m |
|
定尺長(zhǎng)度 fixed length |
-0/+50mm |
|
超長(zhǎng) over long |
7-23m |
|
彎曲度 straightness |
≦3mm/m, 總彎曲度total straightness length ≦ total length總長(zhǎng)度0.5% |
|
不圓度 ovality |
不大于公稱直徑公差的0.7倍 Not greater than 0.7 times the nominal diameter tolerance |
|

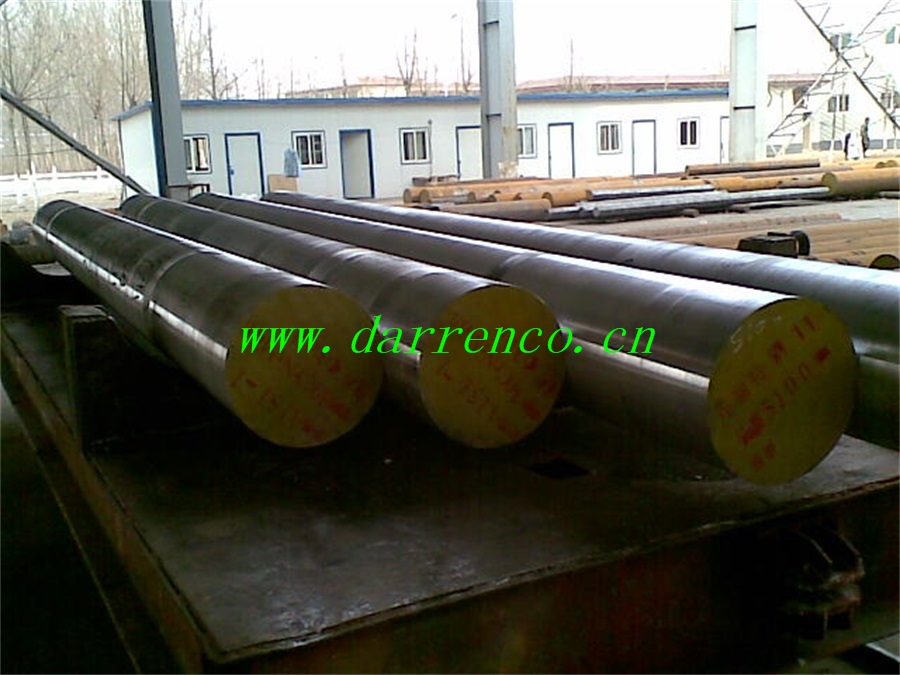

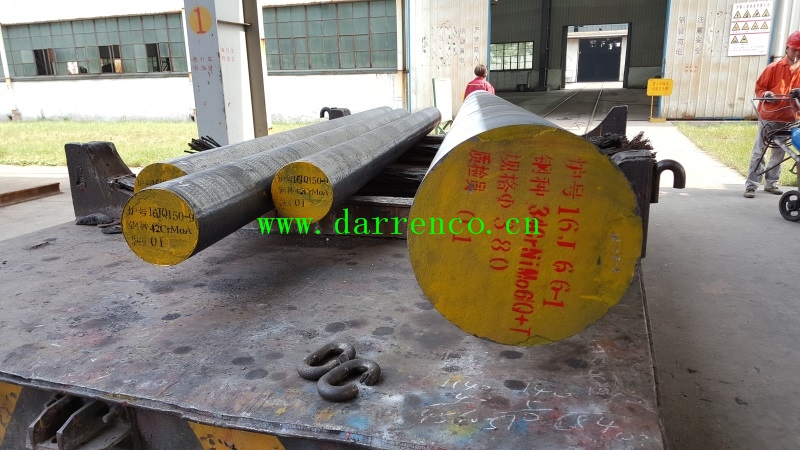

鍛材生產(chǎn)直徑范圍forged bar dia range |
140-600mm |
-
冶煉方法 smelting process
電弧爐+爐外精煉+真空脫氣冶煉，下注鋼錠，電渣重熔需在合同中注明 EAF+LF+VD bottom pour ingot, ESR need indicate in contract
-
交貨狀態(tài) delivery condition
退火磨氧化皮、車光、正火、調(diào)質(zhì)，交貨狀態(tài)需合同注明 annealed grinding surface. If need machining, normalizing or Q&T need
indicate in contract
-
化學(xué)成份 chemical composition
|
牌號(hào)grade |
C |
Si |
Mn |
P≦ |
S≦ |
Cr |
Ni |
Mo |
V |
|
34Cr2Ni2Mo |
0.30/0.38 |
0.17/0.37 |
0.50/0.80 |
0.025 |
0.025 |
1.3/1.7 |
1.3/1.7 |
0.15/0.30 |
|
其他元素檢測(cè)需要合同注明 other elements test result need indicate in contract.
-
力學(xué)性能,交貨硬度 mechanical property,hardness
|
推薦的熱處理制度Recommended heat treatment regime |
力學(xué)性能mechanical property |
退火或回火交貨硬度annealed or tempered HBW |
|
淬火quenching |
回火tempering |
抗拉強(qiáng)度 tensile MPa |
屈服強(qiáng)度yield MPa |
伸長(zhǎng)率 elongation A% |
收縮率shrinkage Z% |
沖擊功impact J |
|
加熱溫度℃ heating |
冷卻劑coolant |
加熱溫度℃ heating |
冷卻劑coolant |
|
第1次淬火first time quenching |
第2次淬火 2rd quenching |
不小于 ≧ |
不大于 ≦ |
|
850 |
|
油oil |
540 |
Water,oil |
980 |
835 |
10 |
50 |
71 |
269 |
-
低倍組織 酸浸低倍試片上不得有目視可見的縮孔、夾雜、分層、裂紋、氣泡和白點(diǎn)。Macrostructure No visible shrinkage,
-
inclusion, delamination, cracks, bubbles or white spots should be observed on the acid – soaked sample piece
|
鋼材直徑diameter mm |
1組 group |
2組 group |
|
中心疏松 center porosity |
錠型偏析segregation |
中心疏松center porosity |
錠型偏析segregation |
|
級(jí)，不大于 class ≦ |
|
≦80 |
2.0 |
2.0 |
3.0 |
3.0 |
|
>80-150 |
2.5 |
3.0 |
3.5 |
3.0 |
|
>150-250 |
3.0 |
3.0 |
4.0 |
4.0 |
|
>250-400 |
3.5 |
3.0 |
4.5 |
4.0 |
|
>400 |
協(xié)商 Negotiate |
電渣鋼合格級(jí)別供需雙方協(xié)議 ESR steel qualified level need negotiate.
-
顯微組織 microstructure
-
珠光體組織 合格級(jí)別1-5級(jí)，熱壓力加工用鋼不檢測(cè) pearlite 1-5 class
-
網(wǎng)狀碳化物 直徑不大于60MM合格級(jí)別不大于3級(jí) carbide network ≦ 3 class
-
共晶碳化物不均勻度（冷作模具鋼檢測(cè)）Eutectic carbide inhomogeneity
|
鋼材直徑diameter MM |
共晶碳化物不均勻度合格級(jí)別Eutectic carbide inhomogeneity qualified level |
|
1組group |
2組 group |
|
級(jí)，不大于 class ≦ |
|
>120-400 |
6 |
協(xié)議Negotiate |
|
>400 |
協(xié)議Negotiate |
協(xié)議Negotiate |
-
非金屬夾雜物 nonmetallic inclusion
電渣鋼結(jié)果符合1組，真空脫氣鋼符合2組 ESR steel conform to 1 group , VD steel conform to 2 group
|
非金屬夾雜物類別nonmetallic inclusion type |
1組 group |
2組 group |
DS |
|
細(xì)系thin series |
粗系heavy series |
細(xì)系thin series |
粗系heavy series |
|
級(jí)，不大于 class ≦ |
≦ |
|
A |
3.0 |
2.5 |
2.5 |
2.0 |
2 |
|
B |
3.0 |
2.0 |
2.5 |
1.5 |
|
C |
2.0 |
1.5 |
1.5 |
1.0 |
|
D |
2.0 |
1.5 |
1.5 |
1.0 |
-
脫碳層 decarburized layer
脫碳層深度不大于0.25+1%D,直徑大于150mm雙方協(xié)議 decarburized layer depth not greater than 0.25+1%D, diameter over 150mm
negotiate.
-
超聲檢測(cè) UT test
執(zhí)行標(biāo)準(zhǔn)GB/T6402-2008,常規(guī)規(guī)格執(zhí)行D/d級(jí)，直徑400以上雙方協(xié)議，鋼材內(nèi)部不允許有白點(diǎn)、夾渣、分層、內(nèi)裂、縮孔等冶金缺陷
standard as per GB/T6402-2008 /SEP1921 C/c or D/d class. No white spot, slag inclusion, delamination, cracking, shrinkage and
other metallurgical defects are allowed inside the steel
|
缺陷尺寸級(jí)別 defect size level |
單個(gè)缺陷平底孔直徑single FBH mm |
連續(xù)缺陷平底孔直徑continuous FBH mm |
連續(xù)缺陷最大長(zhǎng)度continuous FBH length mm |
|
C |
7 |
5 |
40 |
|
D |
5 |
3 |
30 |
|
E |
3 |
2 |
30 |
|
缺陷數(shù)量級(jí)別defect qty level |
單個(gè)缺陷數(shù)量single FBH QTY |
連續(xù)缺陷數(shù)量continuous FBH QTY |
|
個(gè)數(shù)，不大于 number ≯ |
|
c |
8 |
4 |
|
d |
4 |
2 |
|
e |
2 |
1 |
-
表面質(zhì)量 surface quality
鍛材表面沒有目視可見的裂紋、折疊、結(jié)疤和夾雜，如有上述缺陷就清除，深度不大于截面尺寸4%，清除寬度不小于深度的5倍，
There are no visible cracks, folds, scars or inclusions on the surface. If there are any of the above defects, they should be
removed with a depth not greater than 4% of the section size and a width not less than 5 times of the depth.
-
特殊要求 special requirements
超出標(biāo)準(zhǔn)約定范圍的供需雙方協(xié)議 The buyer and the seller negotiate beyond the agreed scope of the standard
-
起訂量30噸以上，交貨期30天 MOQ 20-35 tons, 30 days delivery time.
優(yōu)勢(shì) advantage
工藝成熟，煉鋼采用氣體保戶澆注，快鍛機(jī)開坯，徑鍛機(jī)成材，鍛造頻率高恒溫鍛造有利于得到較好鋼材內(nèi)部組織。
The process is mature, pouring by gas protected, blooming by fast forging machine, forming by radial forging machine, forging with high
frequency and constant temperature is beneficial to get better steel internal organization.
|
|
|
|
|
|
